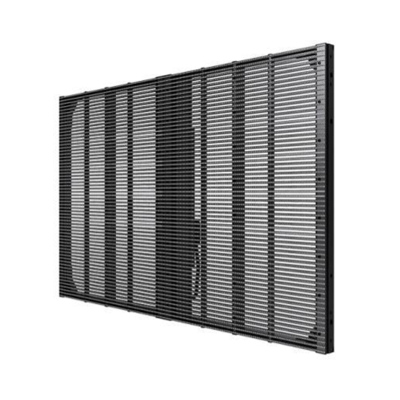

PH3.9*7.8-LED OUTDOOR MESH SCREEN

Pixel Pitch

L (3 .91mm) * W(7 .82mm)

Pixel  Density

32768 pixels/㎡

Display Thickness

8cm

LED chip

SMD1921

Product Size

Module size： 500* 125mm     Cabinet size： 1000* 1000mm

Power consumption

Average： 240W/㎡ ，   Maximum： 800W/㎡

Screen Weight

≤12kg/㎡

Power Supply Brand

YUANCHI

Screen Transparency

>50%

IP Rating

IP65

Average Lifespan

≥100 , 000 operating hours

Power Requirements

220V±10% ; AC50HZ

Screen Brightness

1500-5500cd/㎡

Viewing Distance

Clear image visible at 6 m - 2 5 0 m distance

Viewing Angle

Horizontal ≥160 ° , Vertical ≥140 °

Gray Level

≥16 bit

Color Temperature

5500K- 15000K (adjustable)

Driving Method

1/6S

Attenuation Rate

Less than 0 .05%  in 2 years

Refresh  Rate

≥3840HZ

Frame Rate

≥60HZ

Trouble-Free Operating Time

≥10 ,000 hours

Led chip Failure Rate

≤1/ 10 ,000

Control System

Colorlight/ Novastar, synchronous/asynchronous

Operating Environment

Operating environment: - 10 ~ +65 ℃/  10 ~ 90 % RH  Storage environment: -40+85 ℃/  10 ~ 90 % RH

Installation Method

Hanging installation , fixed installation .
