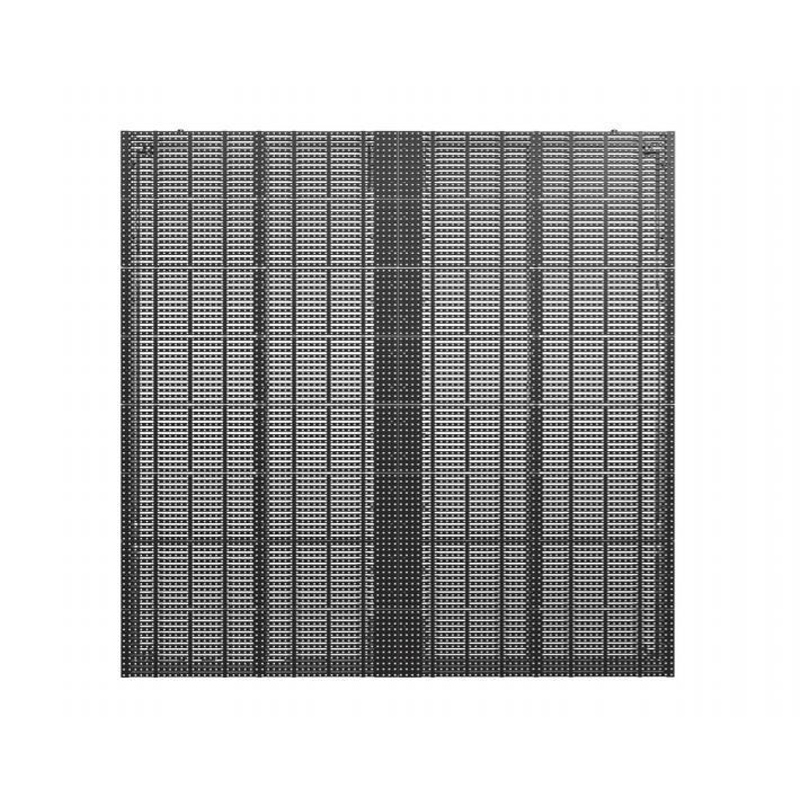

PH5.2*10.4-LED OUTDOOR MESH SCREEN

1

Pixel Pitch

L (5 .2mm) * W( 10 .4mm)

2

Pixel  Density

18432 pixels/㎡

3

Display Thickness

8cm

4

LED chip

SMD1921

5

Product Size

Module size： 500* 125mm     Cabinet size： 1000* 1000mm

6

Power consumption

Average： 240W/㎡ ，   Maximum： 800W/㎡

7

Screen Weight

≤12kg/㎡

8

Power Supply Brand

YUANCHI

9

Screen Transparency

>55%

10

IP Rating

IP65

11

Average Lifespan

≥100 , 000 operating hours

12

Power Requirements

220V±10% ; AC50HZ

13

Screen Brightness

1500-5500cd/㎡

14

Viewing Distance

Clear image visible at  1 0 m - 2 5 0 m distance

15

Viewing Angle

Horizontal ≥160 ° , Vertical ≥140 °

16

Gray Level

≥16 bit

17

Color Temperature

5500K- 15000K (adjustable)

18

Driving Method

1/8S

19

Attenuation Rate

Less than 0 .05%  in 2 years

20

Refresh  Rate

≥3840HZ

21

Frame Rate

≥60HZ

22

Trouble-Free Operating Time

≥10 ,000 hours

23

Led chip Failure Rate

≤1/ 10 ,000

24

Control System

Colorlight/ Novastar, synchronous/asynchronous

25

Operating Environment

Operating environment: - 10 ~ +65 ℃/  10 ~ 90 % RH  Storage environment: -40+85 ℃/  10 ~ 90 % RH

26

Installation Method

Hanging installation , fixed installation .
